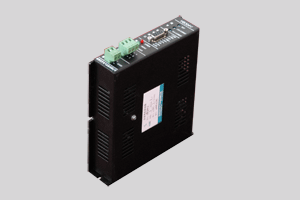

HB304V
3-phase hybrid stepping driver
一、Features
- AC24～50V or DC36～70V DC Supply
- Max 6A Phase Current Output
- Robust to Parameters of Stepper Motors
- Half、 Full step switch control
- Disable control (Free)
- Holding Position when repowered
- Static Half Current Lock
- Isolated Input （Photo-coupler）
|
 |
二、Adapter
Motors
57、70、86、90BYG Series 3-phase hybrid stepper motors
三、Inputs &
Outputs
|
Label |
Function |
Note |
| CP+ |
Pulse Signal + |
Photo-coupler Input resistance 390 Ω, Rated 5V, 12mA,
10us minimum pulse width |
| CP- |
Pulse Signal - |
|
CW+ |
Direction Signal + |
|
CW- |
Direction Signal - |
|
H/F+ |
Full/Half step Switch + |
ON: Full step; OFF: Half step |
|
H/F- |
Full/Half step Switch - |
| FRE+ |
Disable Signal + |
Photo-coupler ON: disable Output; OFF: Enable Output |
| FRE- |
Disable Signal - |
|
COM |
Common Ground |
common ground of CP,CW,FREE,H/F |
| POWER |
Power Indicator led |
Red |
| TIMING |
Phase Origin Indicator Led |
Green |
| ERROR |
Error Indicator led |
Red |
|
A |
A Output |
|
|
B |
B Output |
|
|
C |
C Output |
|
| AC40V |
Power Supply |
Rated AC40V（AC24～50V/DC36～70V）,3A |
Note: non 5V signal request corresponding increase in external resistor(about 10mA Current)
四、Current Settings
Label |
Function |
Note |
| RUN CURRENT |
Current setting |
Clockwise larger |
| LOCK CURRENT |
Static Current Setting |
Clockwise larger |
| TEST |
reserved |
|

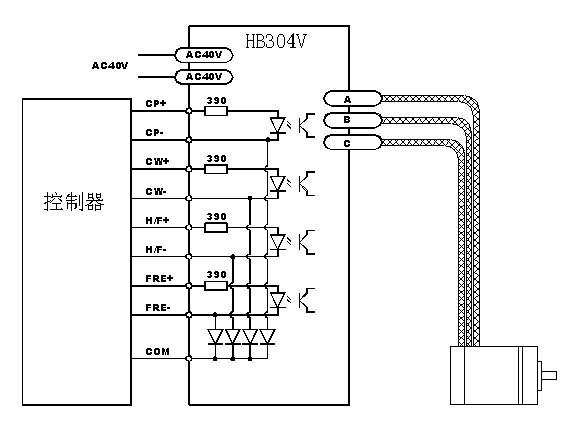

五、Connection

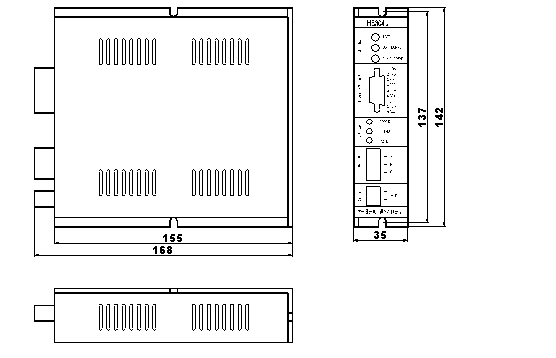

六、Dimensions
|
